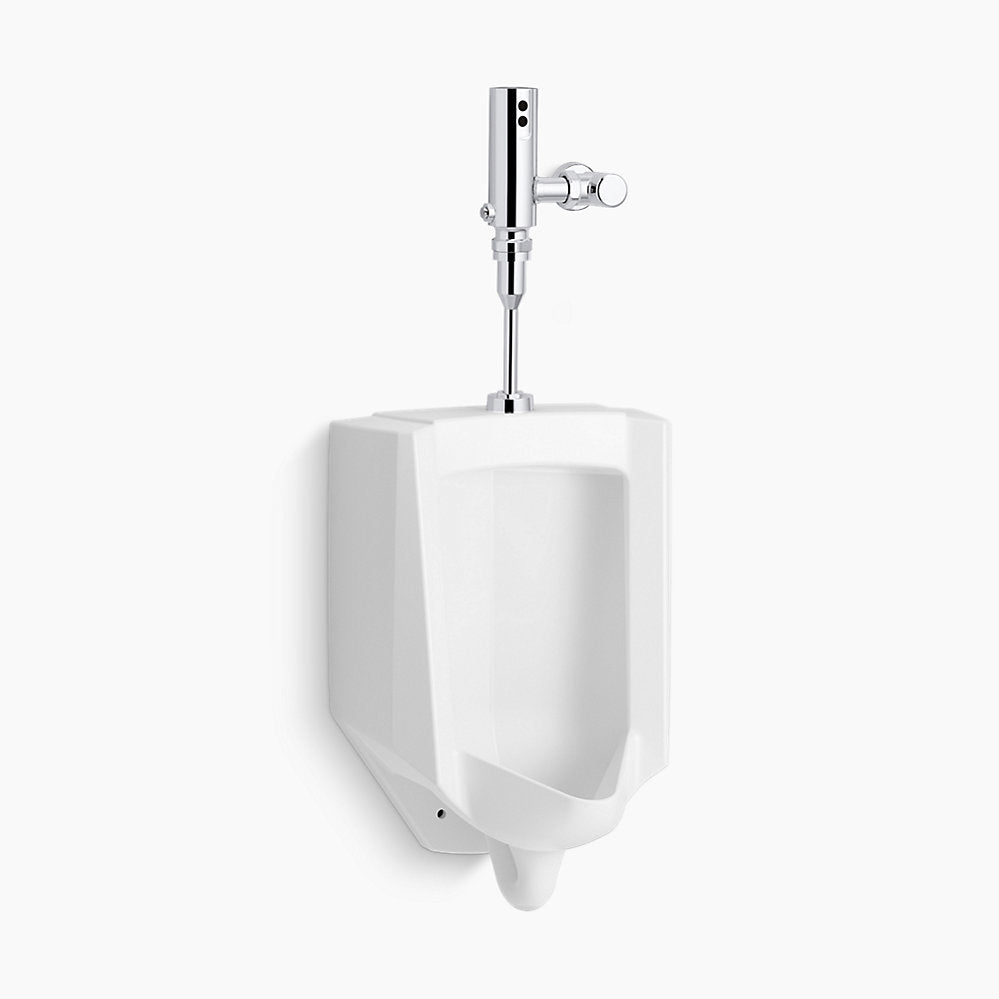

The newly redesigned Bardon high-efficiency urinal provides flexible flushing options along with a bold new contemporary look. The Bardon operates in the range from 0.125 to 1.0 gpf. When paired with a 0.5 gpf Mach Tripoint touchless flushometer, this urinal is ideal for water conservation installations, and qualifies as a High-Efficiency Urinal (HEU) that can help a building earn Water Efficiency points in the LEED® Green Building Rating System.

Features

• Fixture and touchless flushometer combination is engineered for optimal performance
• Washout urinal
• Includes anti-backsplash wall
• 0.5 gpf (1.9 lpf)
• 3/4" (19 mm) top spud
• Flush valve activation distance is factory-set
• No external flush volume adjustment ensures water conservation
• 24-hour automatic sentinel flush keeps trapway fresh
• Mechanical override enables flushometer to be used manually even during a power outage
• Chloramine and chlorine resistance on all rubber components exposed to waterway
• Locking stop cap provides protection against vandalism
• 125-micron filter protects internal components
• High back pressure vacuum breaker
• Powered by a 30 year/875,000 cycle hybrid energy cell, based on 72 uses per day
• For this combination, order K-4991-ET urinal and K-10UH00G20 flushometer

Technology

• Electronic infrared sensor with Tripoint® technology for accurate activation
• Patented piston technology for superior flush volume accuracy

Material

• Vitreous china urinal
• Brass flush valve with durable Polished Chrome finish

Water Conservation & Rebates

• This product can help a building earn Water Efficiency points in LEED® Green Building Rating System
